CUBE: Reaction Hybrid Pro 500 2020 Trapeze
Our designers always start with a clear goal in mind. In the case of the Reaction Hybrid Pro, it was a simple one: build a Bosch e-bike that will help its rider get more out of the trails they ride. To that end, they went back to the drawing board for 2020 and came up with a brand-new frame design that’s sleeker, stiffer and more versatile than ever, incorporating Bosch’s fourth-generation CX motor. Integrated cable routing complements the clean lines and reduces maintenance, whilst compatibility with CUBE accessories and a remote dropper post makes upgrading and accessorising a cinch. The seamlessly integrated Bosch drive unit and battery, controlled via a Purion handlebar-mounted interface, quietly and efficiently gets on with the job of boosting your pedal power for easier climbs, faster routes and expanded horizons.

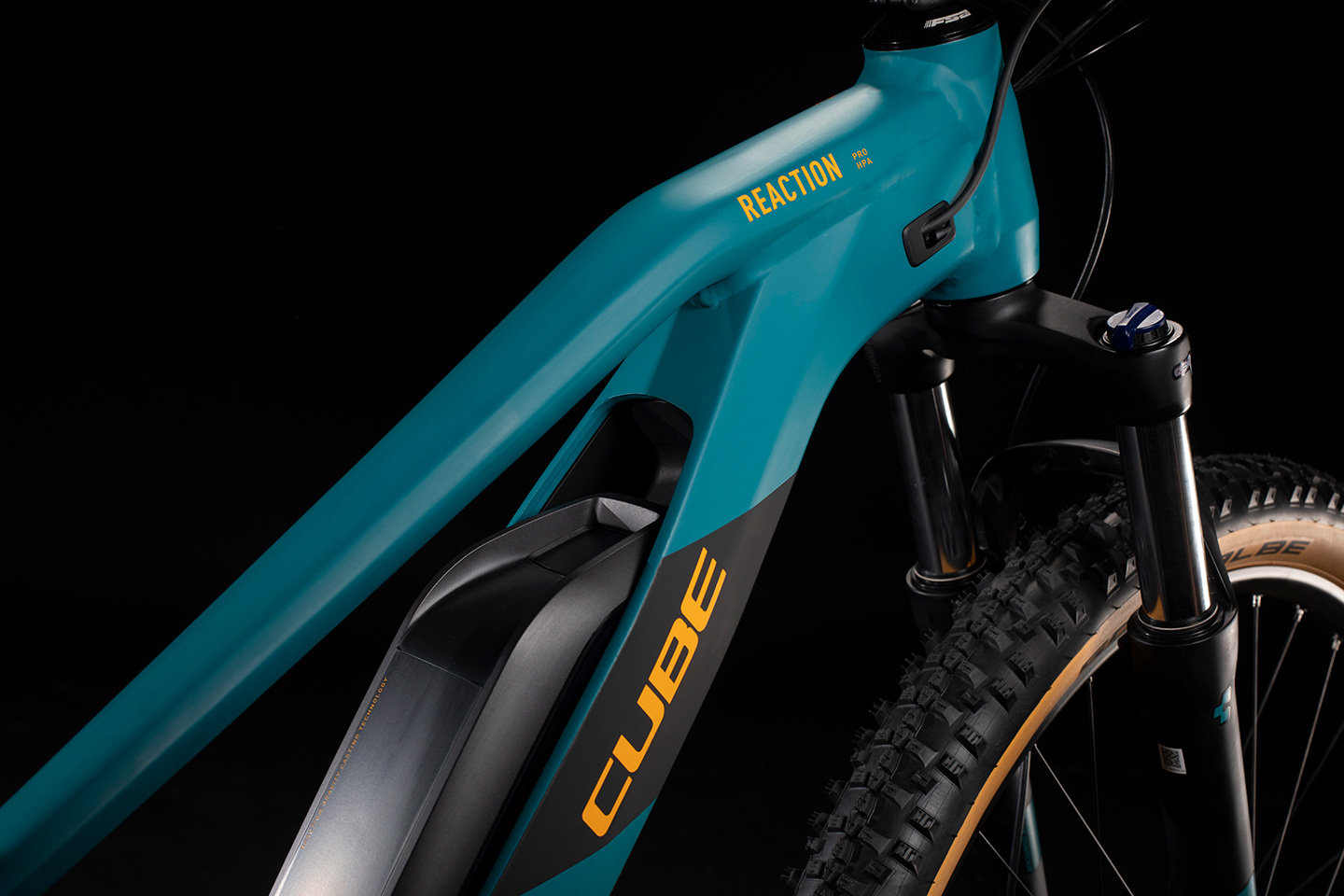

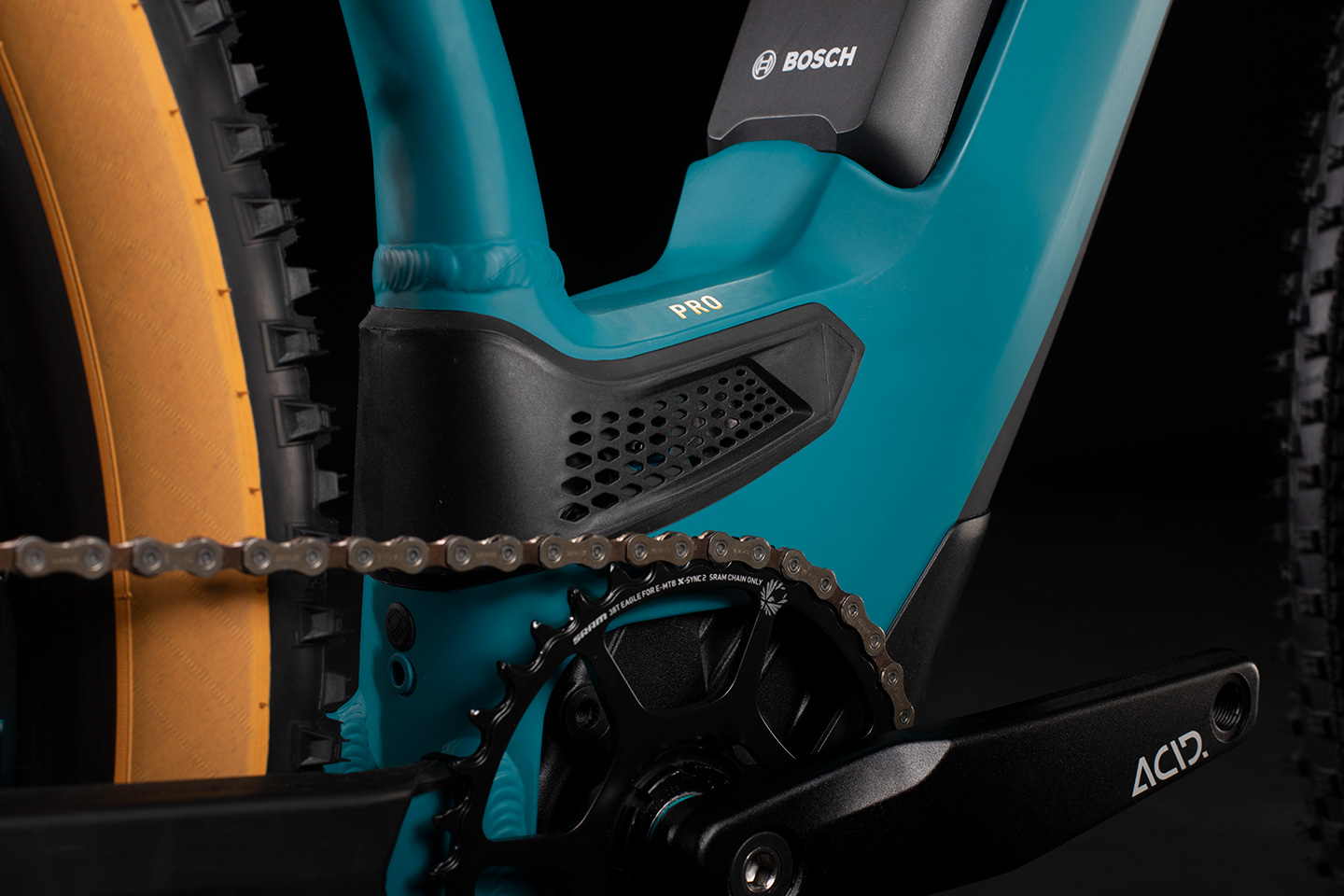

We’ve years of experience building Bosch-powered mountain bike hybrids – and we put all of that knowledge to good use in the brand-new Reaction Hybrid frame. Designed around the needs of Bosch’s superb fourth-generation drive system, we built a frame that’s sleeker, better handling and easier to live with than ever – and, with our Size Split system and a trapeze frame option on some models, we have got the perfect size and fit for every rider. Housing the Bosch battery securely in its gravity cast down tube, our engineers also routed all cables internally to keep them out of harm’s way and keep gear shifts clean and precise with minimal maintenance. The 1.5in head tube and Agile Ride Geometry delivers impeccably precise steering, there’s an integrated kickstand mount and we even ensured that there’s routing for a stealth dropper post upgrade, so your Reaction Hybrid will stay with you as your riding skills develop. It’s everything that you need, and nothing that you don’t.
Warranty: 6 years on the frame and 1 years on everything else on the bike.
|Frame||Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Internal Cable Routing, Semi-Integrated Battery, Kickstand/Fender/Carrier Mounting Points|
|Fork||SR Suntour XCM34 Coil, Tapered, 15x110mm, 100mm, Lockout|
|Headset||FSA Orbit Z 1.5B ZS, Top Zero-Stack 1 1/2″ (OD 56mm), Bottom Zero-Stack 1 1/2″ (OD 56mm)|
|Stem||CUBE Performance Stem, 31.8mm|
|Handlebars||CUBE Rise Trail Bar, 680mm|
|Rear Derailleur||Sram SX Eagle™, 12-Speed|
|Shifters||Sram SX Eagle™ Trigger, Single Click|
|Brake System||Shimano BR-MT200, Hydr. Disc Brake (180/180)|
|Crankset||ACID E-Crank, 38T|
|Chain||Sram SX Eagle™|
|Cassette||Sram PG-1210 Eagle™, 11-50T|
|Tyres||Schwalbe Smart Sam, Active, 2.60|
|Saddle||Selle Royal MTB|
|Motor||Bosch Drive Unit Performance Line CX Cruise 20mph Gen4 US (2020)|
|Controller||Full pedal – torque and speed sensors built into motor for an extremely intuitive rider experience.|
|Battery||Bosch PowerPack 500|
|Computer||Integrated into console / monitor – keeps speed / distance / accumulated distance / battery level|
|Max. Speed||Easily adjustable up to 32kmph|
|Range||Up to 100 kilometers with standard battery|
|Power modes||4 levels of Pedal assist mode|
|Bike weight||22,9 kg|
|Frame size||Trapeze: 27.5: 15″ // 29: 17″, 19″|
|Max. rider weight||110kg (265 lbs/ 18s12)|
CUBE is a German bicycle manufacturer that produces many types of bike, but is best known for its mountain bikes.
