CUBE: Touring Hybrid One 500 Diamond
Whatever you do, wherever you go, the Touring Hybrid ONE will get you there in comfort and style. Our affordable, adaptable hybrid tourer has everything you need to make riding your Bosch e-bike a pleasure. Whether you opt for the Easy Entry, Trapeze or Men’s version, our engineers have carefully crafted the frame to ensure seamless integration of the Bosch drive unit and battery, placing them in the optimum position for safe handling and sleek good looks that you’ll be proud of. Slick-shifting 9 speed Shimano gears ensure that you can take on any hill with ease, while powerful hydraulic disc brakes offer safe stopping in all weathers and mudguards, a lighting system and kickstand provide the versatility you need for any eventuality.
Affordable it may be, but compromise isn’t a word that our engineers understand. That’s why every version of the Touring Hybrid ONE – Easy Entry, Trapeze and Men’s – has been lavished with the same attention to detail, including our Smooth Welding process and internally routed cables for reduced maintenance. Star of the show, of course, is the Bosch drive system and battery pack, which have been optimally sited in every frame version to keep the bike’s centre of gravity low. That’s important because, combined with our Efficient Comfort Geometry, it gives the Touring Hybrid ONE the kind of confidence-inspiring handling that you’ll love straight away.
Warranty: 6 years on the frame and 1 years on everything else on the bike.
|Frame||Aluminium Superlite, Gravity Casting, Efficient Comfort Geometry, Semi-Integrated Carrier|
|Fork||SR Suntour NEX-E25, 63mm|
|Headset||FSA Orbit 1.5B ZS-1-R, Top Zero-Stack 1 1/8″ (OD 44mm), Bottom Zero-Stack 1 1/2″ (OD 56mm)|
|Stem||CUBE Performance Stem Pro, 31.8mm; EE: Satori Up2 Plus, 31.8mm, Adjustable|

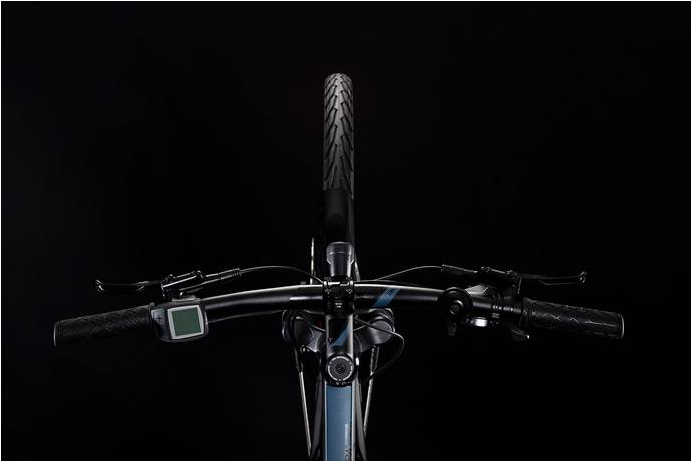

|Handlebars||CUBE Rise Trail Bar, 680mm|
|Rear Derailleur||Shimano RD-M2000-SGS, 9-Speed|
|Shifters||Shimano SL-M2000, Rapidfire-Plus|
|Brake System||Shimano BR-MT200, Hydr. Disc Brake (180/160)|
|Crankset||FSA Metropolis Comfort, 38T, Chainguard|
|Cassette||Shimano CS-HG200, 11-34T|
|Tyres||Schwalbe Range Cruiser, Active, K-Guard, 47×622|
|Saddle||Selle Royal Ariel|

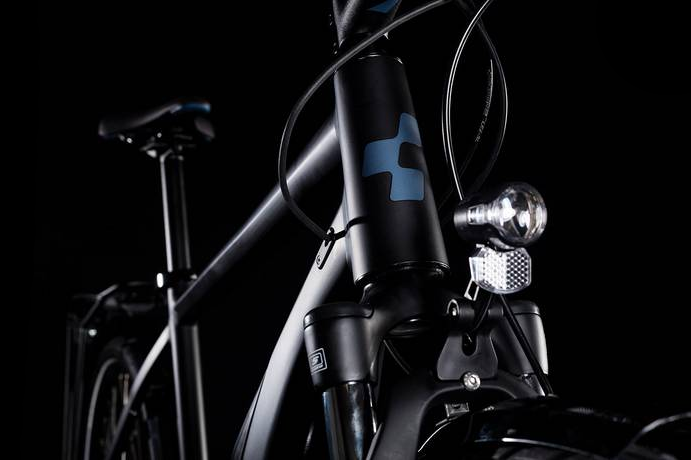

|Front Light||Trelock LS230, 12V, DC|
|Rear Light||Trelock LS611 Duo Flat|
|Carrier||Racktime AddIt CUBE Edition|
|Mudguards||SKS Black Shiny|
|Motor||Bosch Drive Unit Active Plus (50Nm) Cruise (250Watt)|
|Controller||Full pedal – torque and speed sensors built into motor for an extremely intuitive rider experience.|
|Battery||Bosch PowerPack 500|
|Computer||Integrated into console / monitor – keeps speed / distance / accumulated distance / battery level|
|Max. Speed||Easily adjustable up to 32kmph|
|Range||Up to 180 kilometers with standard battery|
|Power modes||4 levels of Pedal assist mode|
|Frame size||Men: 50, 54, 58, 62; Trapeze: 46, 50, 54; Easy Entry: 46, 50, 54, 58 (subject to availability)|
|Max. rider weight||110kg (265 lbs/ 18s12)|
CUBE is a German bicycle manufacturer that produces many types of bike, but is best known for its mountain bikes.
